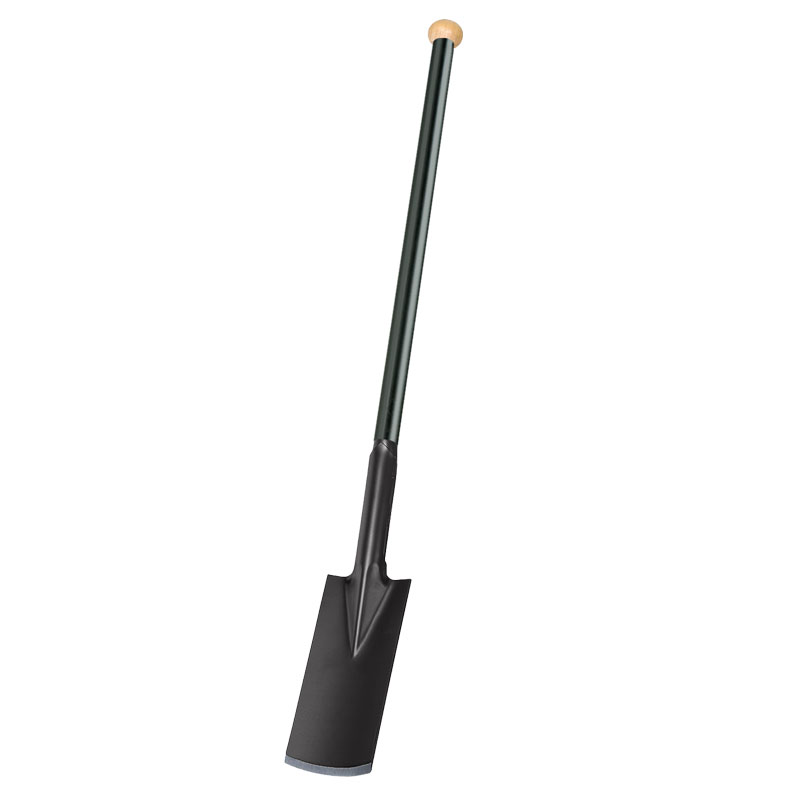

Steel spade with insulation

The Goecke steel spade was specially developed for the high load requirements of setting boundary stones and civil engineering work.

The approx. 1 mm thick insulating hose, which has a dielectric strength of 20,000 V/mm, significantly increases safety when working in areas where cables are suspected.
safety when working in areas where cables are suspected. Nevertheless, insulated crowbars are not approved for working on live parts.

The extremely robust design of the steel spade not only makes it easier to cut through roots, but they can also be used as a compact lever tool with a leverage of up to 2 tons.
  • 2 tools in 1 - combines the properties of a spade and a crowbar
  • Spade blade 5 mm thick, made of high-quality, specially hardened steel
  • approx. 1 cm sharply ground cutting edge
  • Spade shaft protected with 1 mm thick insulating hose
  • High leverage of up to 2 t thanks to optimum power transmission
  • Haptically optimized hardwood knob for flexible tool guidance
  • 10-year guarantee on the complete tool
Total weight: 4.5 kg

Spade blade:
Material: high-quality tempered steel
Processing: specially hardened, 1 cm sharply ground cutting edge
Surface: powder-coated
Powder or paint color: black
Height: 285 mm
Width: 125 mm
Blade thickness: approx. 5.0 mm

Handle:
Material: insulated tubular steel handle (thick-walled)
Insulation: 1 mm thick
Dielectric strength: 20,000V/mm
Handle or grip type: straight with hardwood knob
Length: 1.26 m
Finish: powder-coated
Article-No. product description length PU W EUR/piece quantity
23SP3-IS Steel spade with insulated tubular steel handle and hardwood knob, length 1.26 m, weight 4.5 kg, spade blade 5 mm thick, through-hardened, 285 x 125 mm, sharply ground 127 cm 1 I 145,00*

Products, with one (*) marked to be represented are not discountable.
