The H2C mounting system is used for the stable attachment of field computers to prism poles, GNSS antenna poles or tripods.
As the number of field computer types is constantly increasing or older ones are disappearing from the market, the two-part H2C mounting system was developed. It consists of a basic holder and a computer carrier. This means that different computer carriers can be attached to the same basic holder.

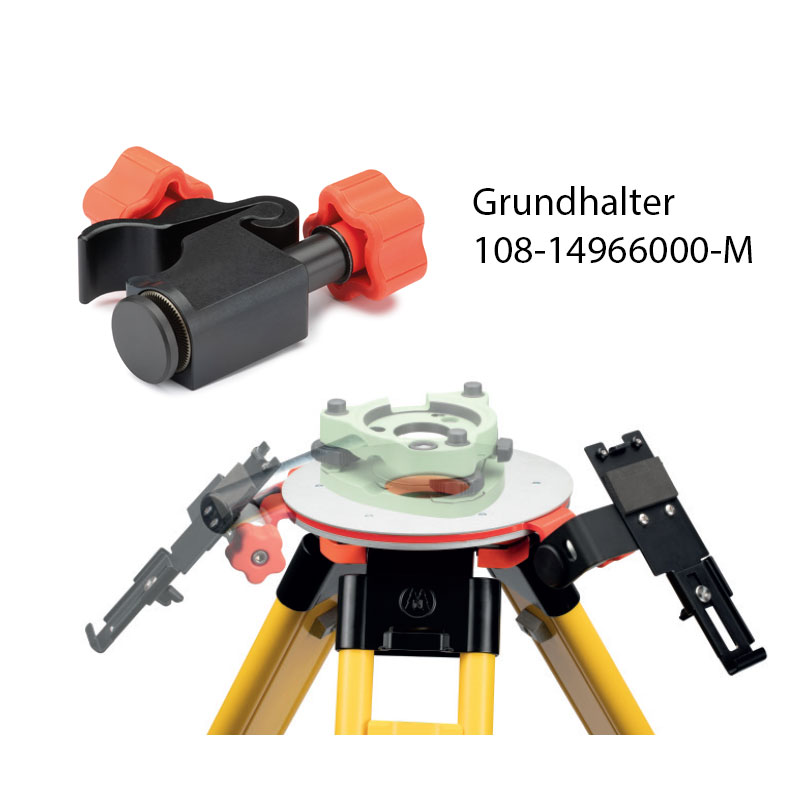

There is a basic holder for rods (108-14966000) and a basic holder for stands with a triangular head plate (108-14964021) with a 360° turntable.
The basic holder for rods (108-14966000) distributes the clamping pressure evenly thanks to the integrated double C-clamp and is therefore ideal for all carbon rods. This basic holder is equipped with a compass for easy orientation during setting out work. Both basic holders can accommodate all calculator carriers, which are individually designed for different types of field calculators.
To connect, the computer carrier is hooked into the basic holder and secured with a clamping screw. The viewing angle of the field computer can be individually adjusted using the toothed disk coupling between the base holder and the computer carrier.
Computer support Suitable for:
108-14985000 Samsung Galaxy Tab2 and Tab3 7"
108-14986000 Mesa2, Mesa3
108-14987000 Zenius 800, Zeno Tab2, CT 8
108-HT62 Leica CS10 and CS15
