Dimensions Characteristic values    Data acquisition
Measuring interval individually adjustable
3D Sensor:
260 x 100 x 51 mm

3D Sensor XT:
220 x 100 x 51 mm
Measuring range:
X: 60 mm
Y: 30 mm
Z: 20 mm
Temperature:
-20 to +54°C
Power supply/max. battery life:
3D sensor: Up to 10 years with 1 measurement per day
3D sensor XT: Approx. 1.5 years with a measurement interval of 15 min;
Mains power supply or PV possible
Reference magnet:
26 x 118 x 26 mm
Accuracy:
Axes X, Y, Z: ± 50 μm
Temperature:
± 0.5°C
Data transmission and storage:
LTE, Wi-Fi, monitoring platform
Data storage available locally at the sensor


Article-No. product description size PU W EUR/piece quantity

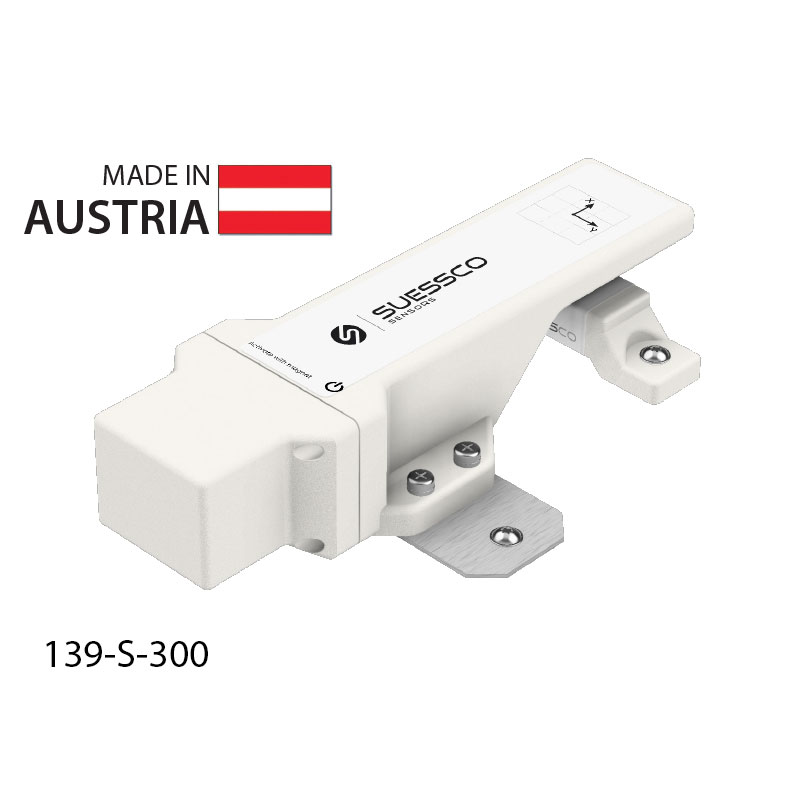

139-S-300 2D sensor, including a reference magnet, mounting plate, and built-in batteries 1 X 690,00*
139-D-300-J Annual license fee for the 2D Monitoring Dashboard and provision of the SIM card (cost per sensor) 1 X 240,00*

Products, with one (*) marked to be represented are not discountable.

This product is compatible with (for example):

Mounting accessories 3D and 6D sensor

Mounting accessories 3D and 6D sensor
